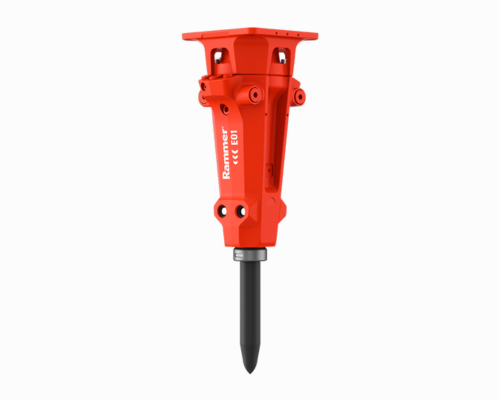

Allied CP E01

The Rammer E01 is the smallest model in Rammer’s compact hydraulic hammer lineup, designed for carriers in the 0.4 to 2.8-tonne range. Despite its size, the E01 delivers powerful performance, ensuring reliability and efficiency across a wide range of applications—from primary and secondary demolition to trenching, recycling, landscaping, and even underwater breaking. It operates using Rammer’s CBE (Constant Blow Energy) principle and a low-pressure membrane accumulator, making it easy to maintain and quick to install on various carriers. Its compact, job-ready design enhances productivity and helps reduce fuel consumption. Built with a modular body for long-term versatility, the E01 can be equipped with optional features like wear plates for added protection, an RD3 remote monitoring system, and an automatic greasing device to extend service life. Additional highlights include a flange mount, idle blow protection, a fast-change tool system, and a single-part tool bushing with a shared tool pin—delivering durable, lightweight performance without tie rods.

Ask a Question

Specs

Minimum working weight (flange mounted): 110 lb
Impact rate (frequency): 880 – 2650 bpm
Operating pressure: 1595 – 2175 psi
Oil flow range: 2.6 – 8.2 gal/min
Pressure relief max: 3190 psi
Back pressure max: 435 psi
Input power: 10 hp
Tool diameter: 1.57 in
Skid steer/robot weight range: 900 – 4200 lb
Mini excavator weight range: 1300 – 6200 lb
Noise level (measured): 117 dB(A)
Noise level (guaranteed): 119 dB(A)

Allied CP E01
