Woods GBC48
The Woods GBC48 is a 48" compact box scraper designed for subcompact and compact tractors up to 25 HP. It features four hardened scarifiers with replaceable tips, reversible high-carbon cutting edges, ASABE quick-hitch compatibility, and a 6.8 cu. ft. material capacity for grading and spreading. Built for driveways, landscape prep, farm lanes, and acreage maintenance, it helps loosen compacted material, level surfaces, and redistribute gravel, soil, sand, or topsoil.
Get a Quote
Ask a Question
Series Models
GBC48
The Woods GBC48 is a 48" compact box scraper with four scarifiers, reversible cutting edges, quick-hitch compatibility, and 6.8 cu. ft. capacity for grading, leveling, and spreading material.
Series Models
GBC48
The Woods GBC48 is a 48" compact box scraper with four scarifiers, reversible cutting edges, quick-hitch compatibility, and 6.8 cu. ft. capacity for grading, leveling, and spreading material.
Woods Landscape Equipment

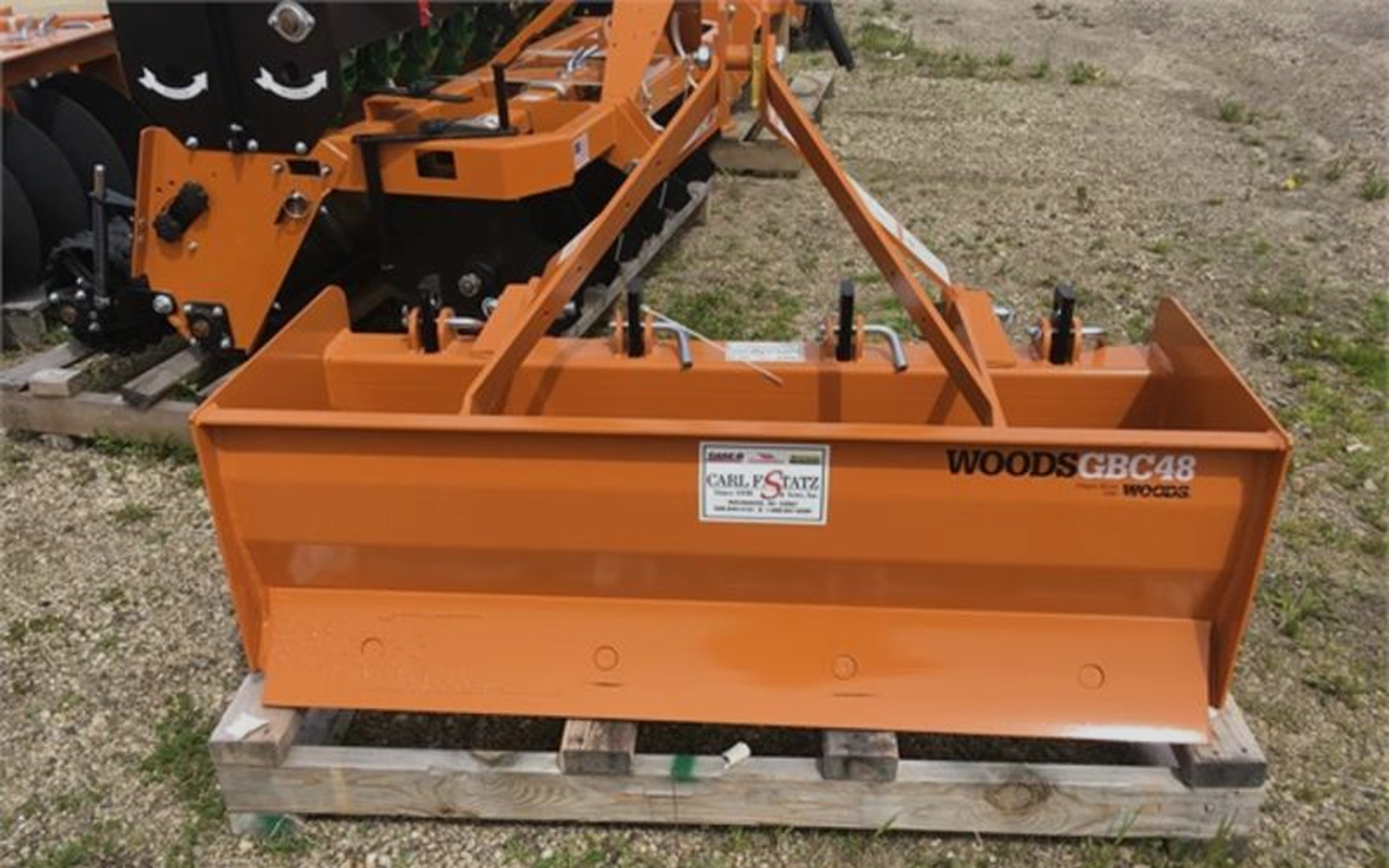

Woods GBC48 Box Scraper
The Woods GBC48 is a 48" box scraper designed for subcompact and compact tractors that need a durable tool for spreading, grading, leveling, and backfilling. With hardened scarifier teeth, reversible cutting edges, and a compact Cat. 0 / limited Cat. 1 / Cat. 1 hitch setup, it is built for practical driveway, farm, landscape, and property maintenance work.
Built For Compact Grading
- 48" working width
- Designed for tractors up to 25 HP
- Cat. 0, limited Cat. 1, and Cat. 1 hitch fit
- Four hardened scarifiers with replaceable tips
- Reversible and replaceable high-carbon cutting edges
Product Features
A compact box scraper made to loosen, collect, level, and spread material with reliable Woods durability.
48" Working Width
- Compact size for subcompact and compact tractors
- Well matched for driveways, paths, and smaller work areas
- Easy to maneuver around buildings, gates, and property edges
Replaceable Scarifiers
- Four scarifier shanks break up compacted material
- Replaceable tips extend service life
- Scarifier depth adjusts from 0" to 1.5"
High-Carbon Cutting Edges
- Two cutting edges for forward and reverse work
- Reversible design helps extend wear life
- Replaceable edges reduce long-term maintenance cost
Strong Box Construction
- High-strength moldboards support rugged grading work
- Fixed tailgate keeps the scraper simple and sturdy
- 6.8 cu. ft. capacity carries loose material for leveling
Quick-Hitch Compatible
- ASABE quick-hitch compatible
- Helps make tractor hookup faster and easier
- Useful for operators switching between implements
Compact Tractor Match
- Built for tractors up to 25 HP
- Approximate 285 lb. implement weight
- Designed to make the most of smaller tractor platforms
Improvements For Property Work
- Better leveling: the box design gathers and redistributes gravel, dirt, sand, or topsoil for smoother results.
- Improved breakup: scarifier teeth loosen packed material before grading or reshaping.
- Longer service life: replaceable scarifier tips and reversible cutting edges help manage wear.
- Easier implement changes: quick-hitch compatibility helps reduce setup time between jobs.
- More control in tight areas: the 48" width works well where larger scrapers are harder to maneuver.
Key Specs
- Model: Woods GBC48
- Type: Compact box scraper
- Working width: 48"
- Capacity: 6.8 cu. ft.
- Tractor engine HP: Up to 25 HP
- Hitch: Cat. 0, limited Cat. 1, and Cat. 1
- Scarifiers: 4
- Approximate weight: 285 lbs.
Application & Use In The Field
A practical scraper for homeowners, landscapers, small farms, and acreage owners maintaining surfaces with compact tractors.
Driveway Maintenance
- Spread and level gravel after rain, snow, or traffic wear
- Cut washboards, fill low spots, and smooth rough sections
- Maintain private drives, lanes, and parking areas
Landscape Prep
- Level soil before seeding or planting
- Spread topsoil, sand, and loose fill material
- Prepare smaller yards, pads, and garden areas
Farm & Acreage Tasks
- Maintain barn approaches, equipment paths, and utility areas
- Backfill shallow trenches and reshape small work zones
- Keep compact tractor chores productive and controlled
Material Spreading
- Carry loose material forward in the box
- Redistribute gravel, soil, and sand in fewer passes
- Use forward or reverse cutting edges for finishing work
Compact Scraping Power For Everyday Grading
The Woods GBC48 gives compact tractor owners a strong, easy-handling box scraper for loosening, leveling, spreading, and maintaining surfaces around homes, farms, landscapes, and rural properties.
