#F43401 EST CI, 1/8" x 1 lb., Contaminated Cast Iron Electrode
$24.11
1 In Stock
Weight: 1.00 lbs

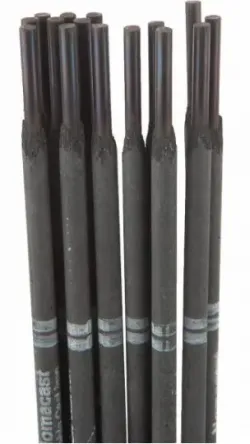

Nomacast non-machinable cast iron specialty welding electrodes feature a non-conductive coating that is specially developed for welding dirty, heat-affected and oxidized cast iron.
Ideally suited to cladding contaminated casting prior to joining with high nickel alloys.
Non-machinable.
Typical applications include machine bases, pedestals, frames and housings where heat and machinability are not an important factor.
PRODUCT SPECIFICATIONS
Hardness: Rockwell C39, Brinell 380
Recommended Polarity: DC Reverse (+), AC
Diameter: 1/8"
Length: 14"
Weight Lbs. (Kg): 1 (.453)
Tensile Strength: 62,000 PSI (440 MPa)
Yield Strength: 50,000 PSI (360 MPa)
Amperage: 70-125
Easily clads heat oxidized and oil impregnated castings
WELDING POSITIONS
Flat, vertical up, horizontal, vertical down and overhead
WELDING TECHNIQUES
Use a stringer or moderate weave technique. When cladding, cover the entire base surface prior to finish welding.
