Used AUSA T235H
800-222-3373 | sales@messicks.com | Print Page
sales@messicks.com

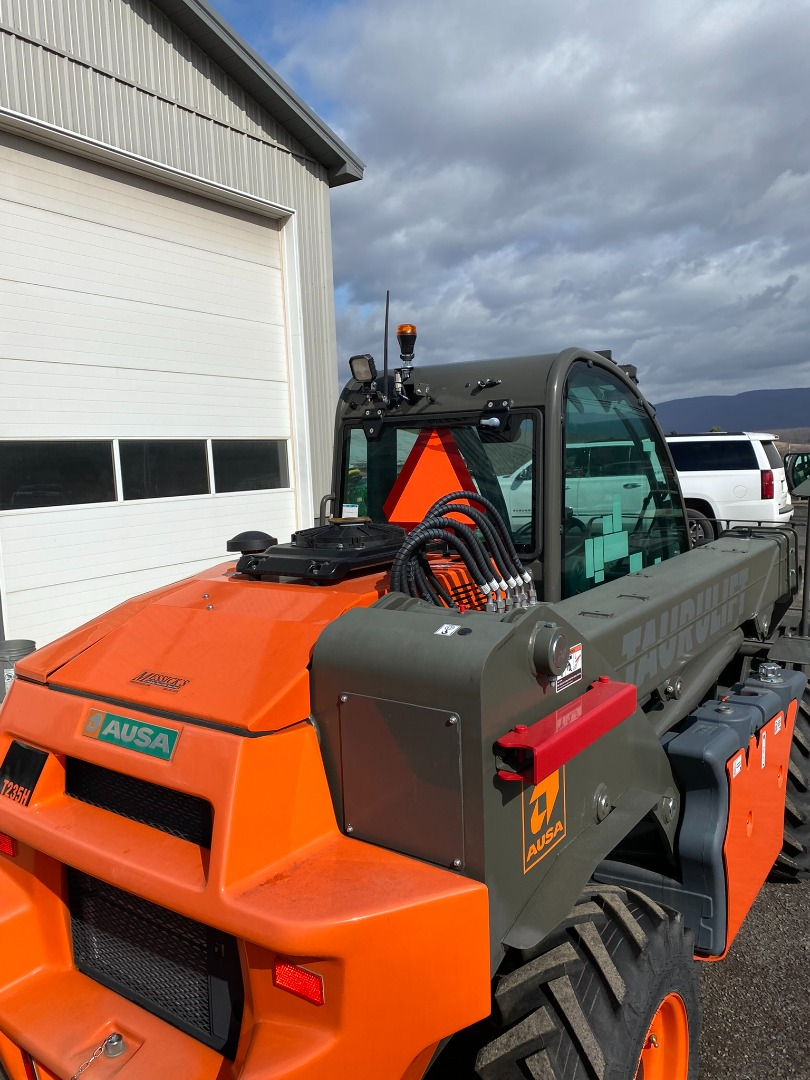

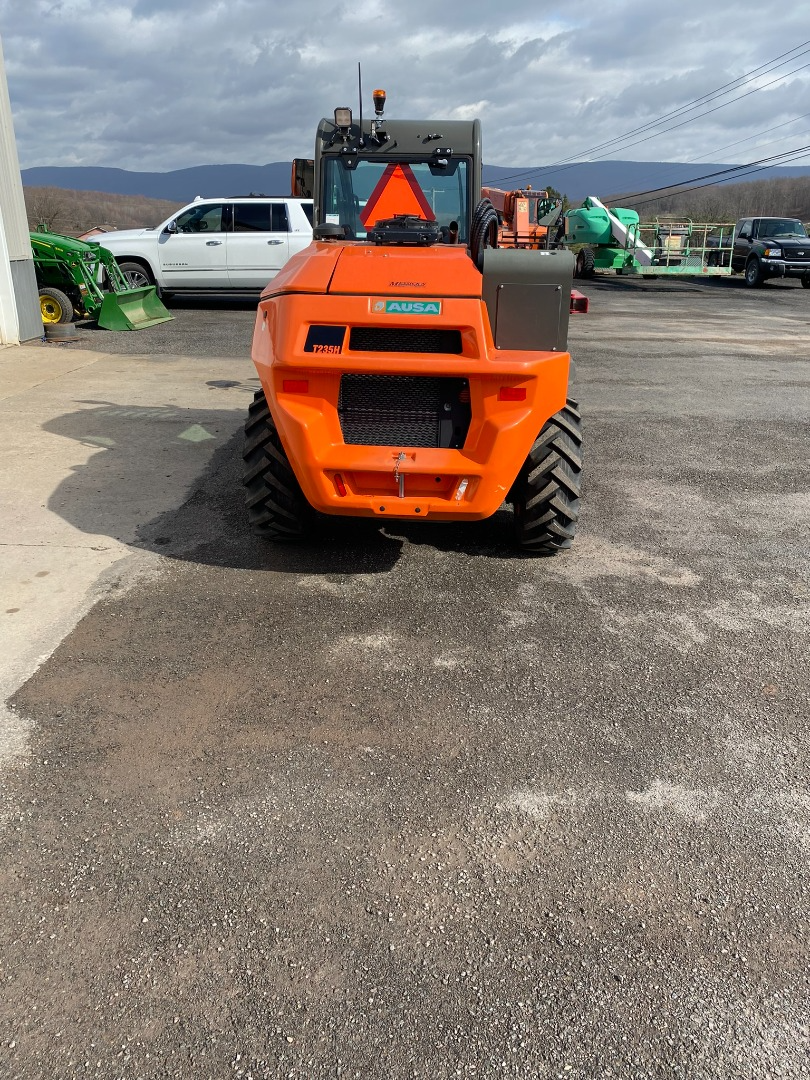

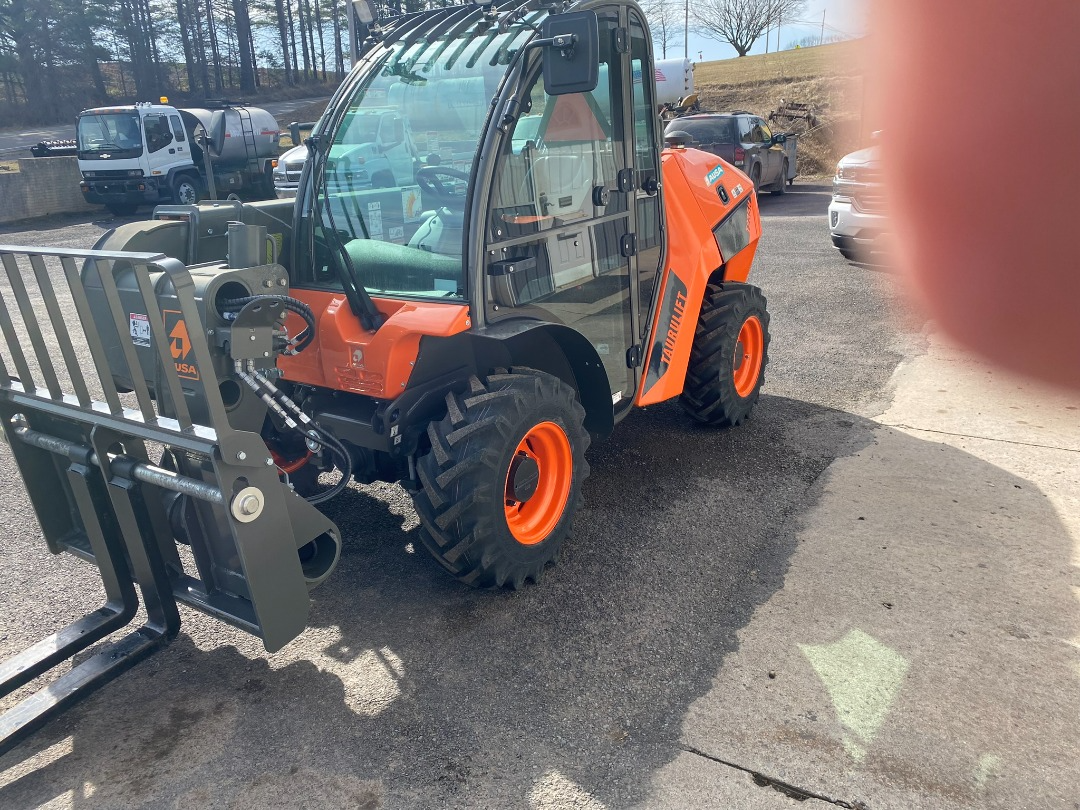

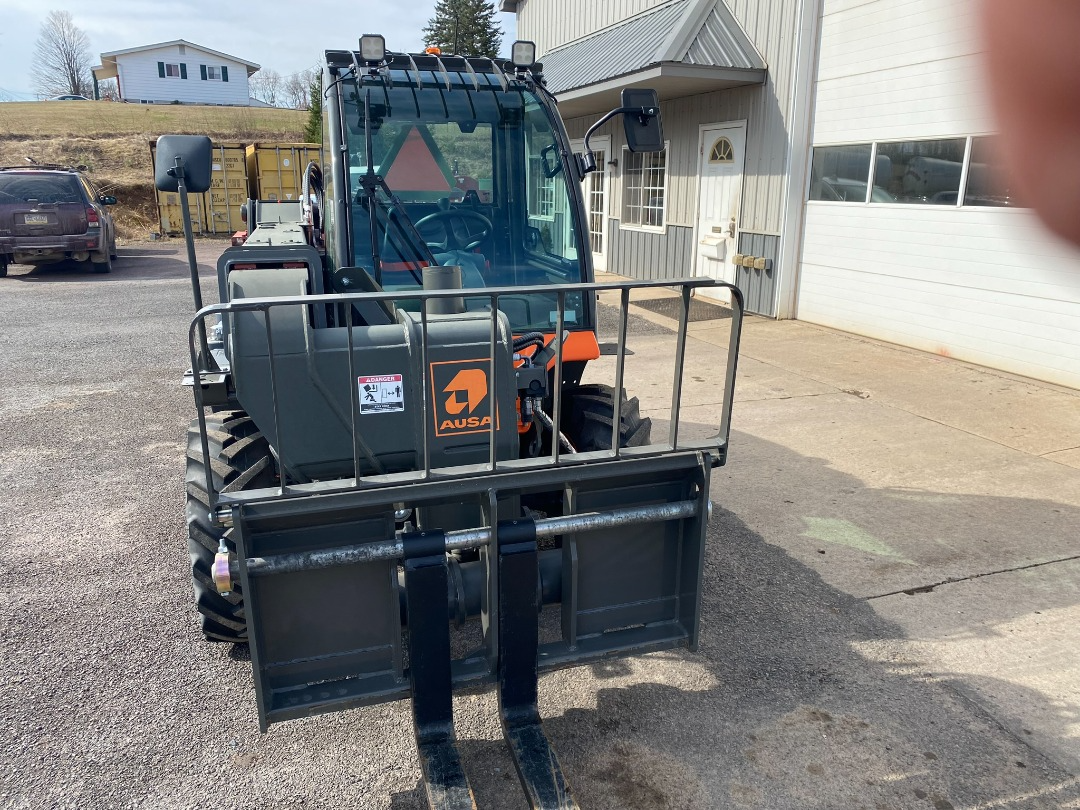

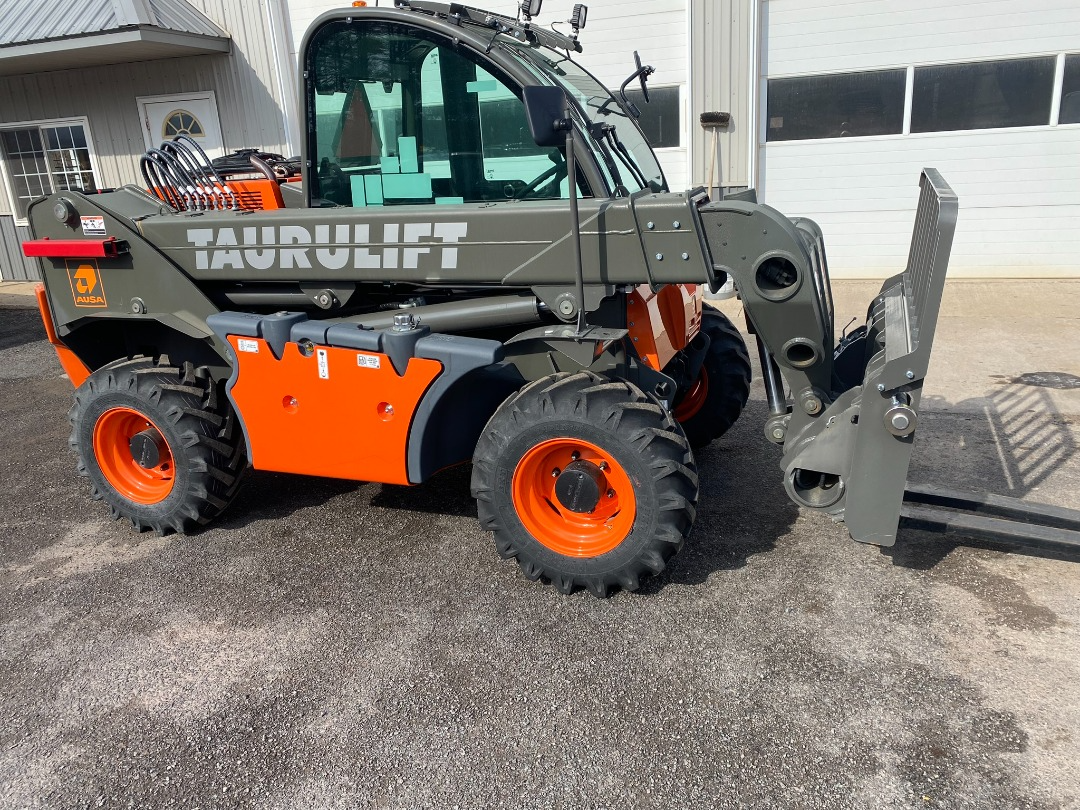

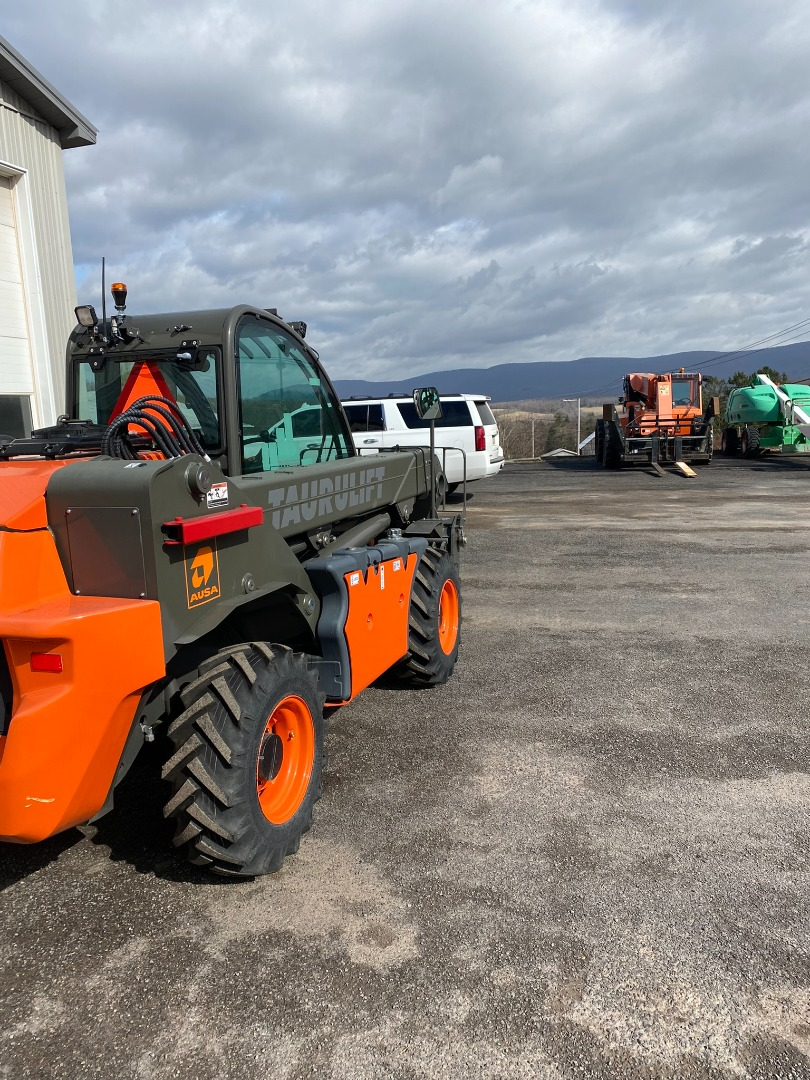

The AUSA T235H is a compact, versatile telehandler designed for maneuverability and efficiency in tight spaces. This unit is in like-new condition, offering exceptional performance with minimal operating hours. With a 5,000 lb lifting capacity and a maximum reach of 16 feet, it is ideal for material handling tasks in agriculture, construction, and industrial applications. The hydrostatic transmission ensures smooth, precise control, while the compact design allows easy operation in confined areas. Perfect for loading, lifting, and transporting materials, the T235H is well-suited for farms, warehouses, and job sites where space and agility are essential. This machine is ready to provide reliable performance for a variety of demanding tasks.

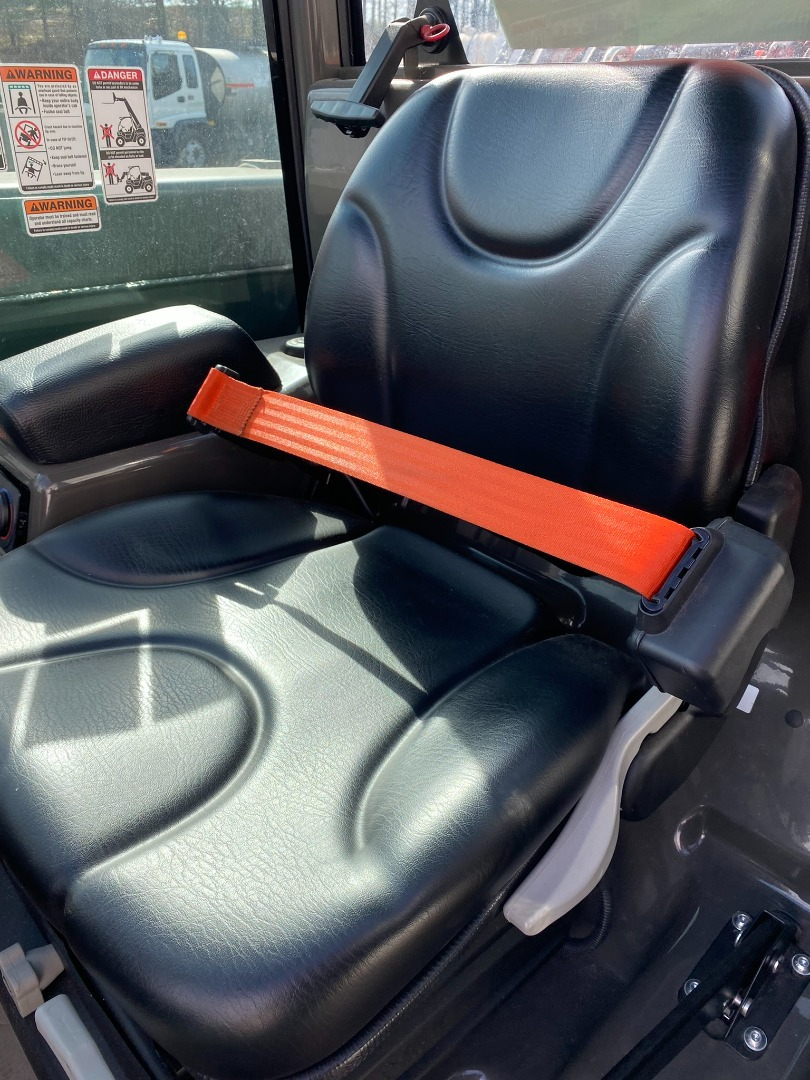

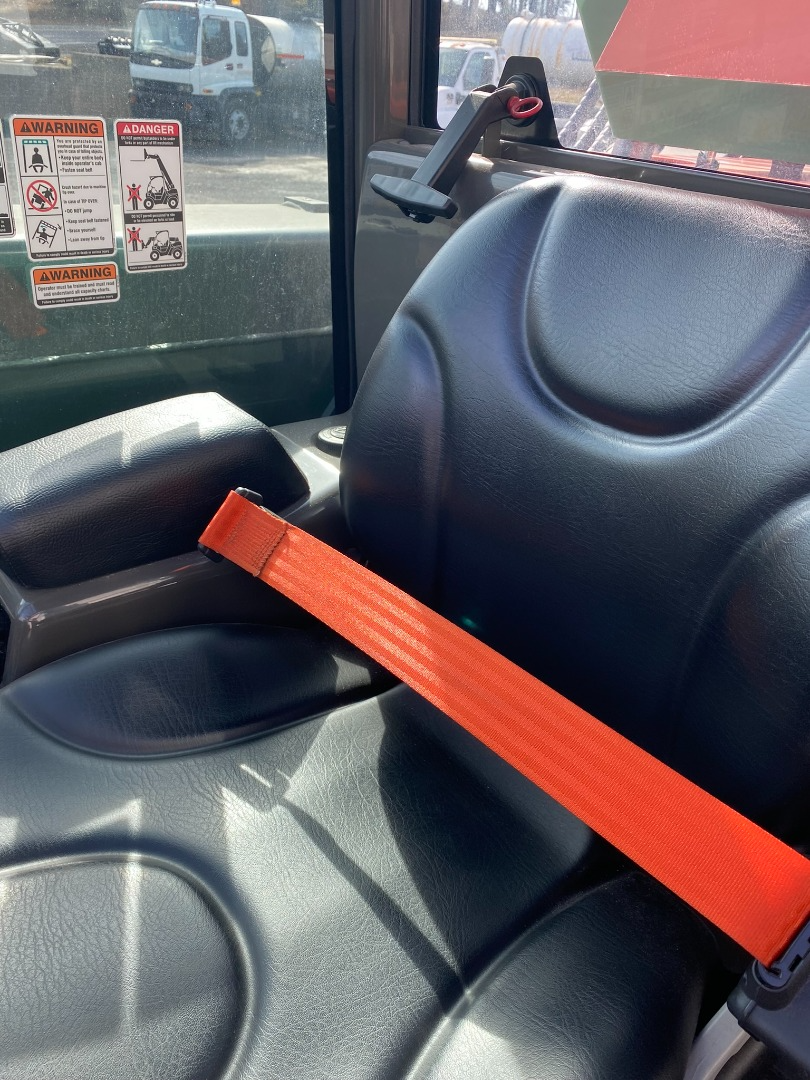

The Ausa T235H is a compact telehandler featuring a robust 44.5 horsepower Kubota diesel engine and 4-wheel drive capability. Equipped with a hydrostatic 2-speed transmission, it can achieve speeds of up to 12.4 mph. This telehandler is designed with operator comfort in mind, boasting a closed soundproof cab complete with both heating and air conditioning, along with a rotating beacon and front and rear work lights for enhanced visibility.

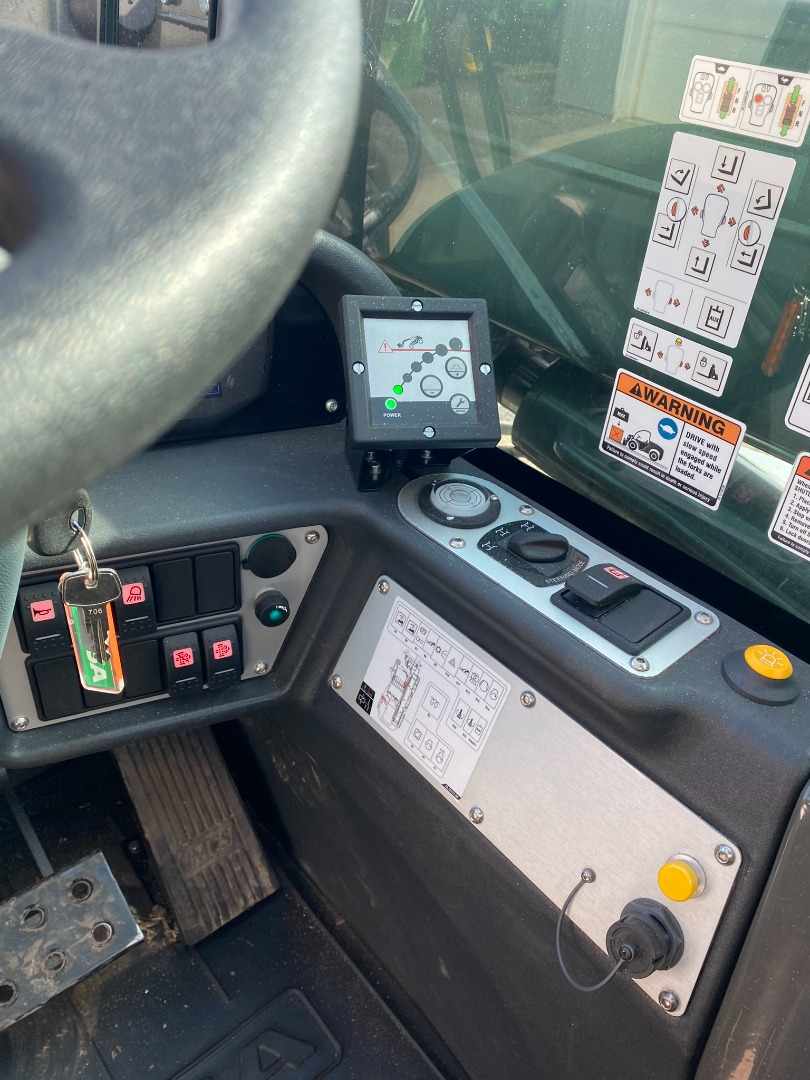

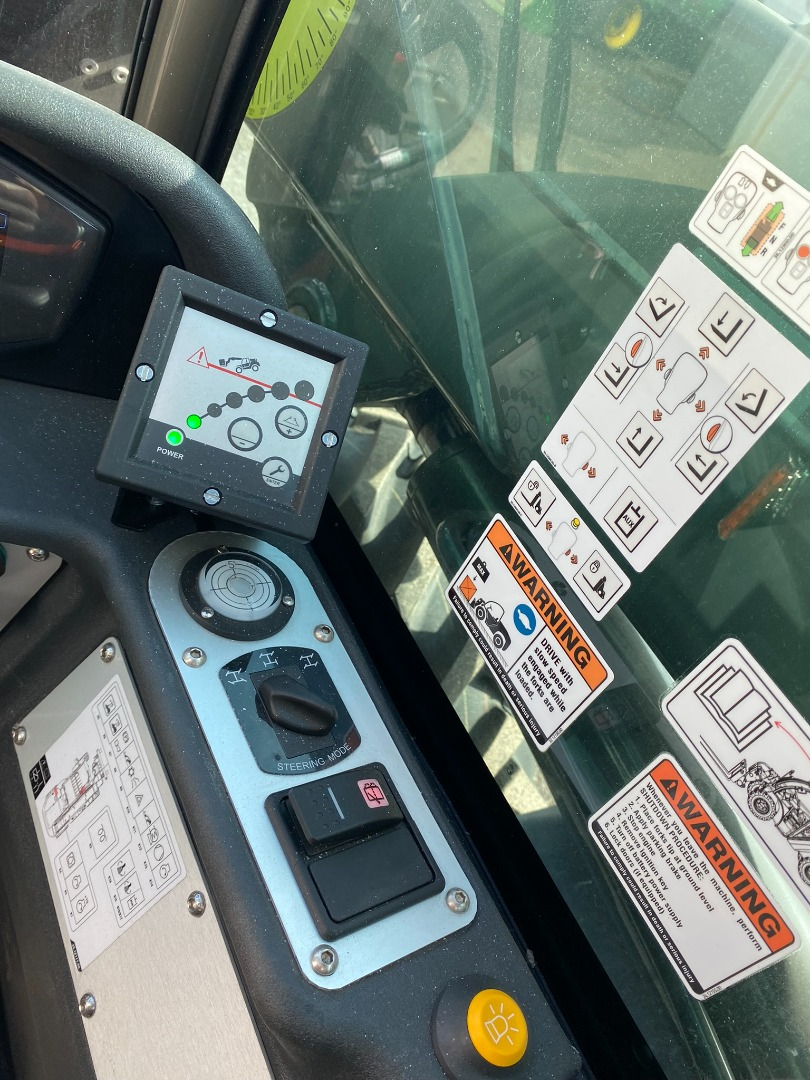

Controlled by an intuitive all-in-one joystick, the T235H offers versatile functionality. It includes a universal skid steer hydraulic bucket coupler and hydraulic disc brakes for smooth operation. Additionally, the telehandler is equipped with a front hydraulic line for a grapple, a continuous flow pump, and outlets with a capacity of 13.68 gallons.

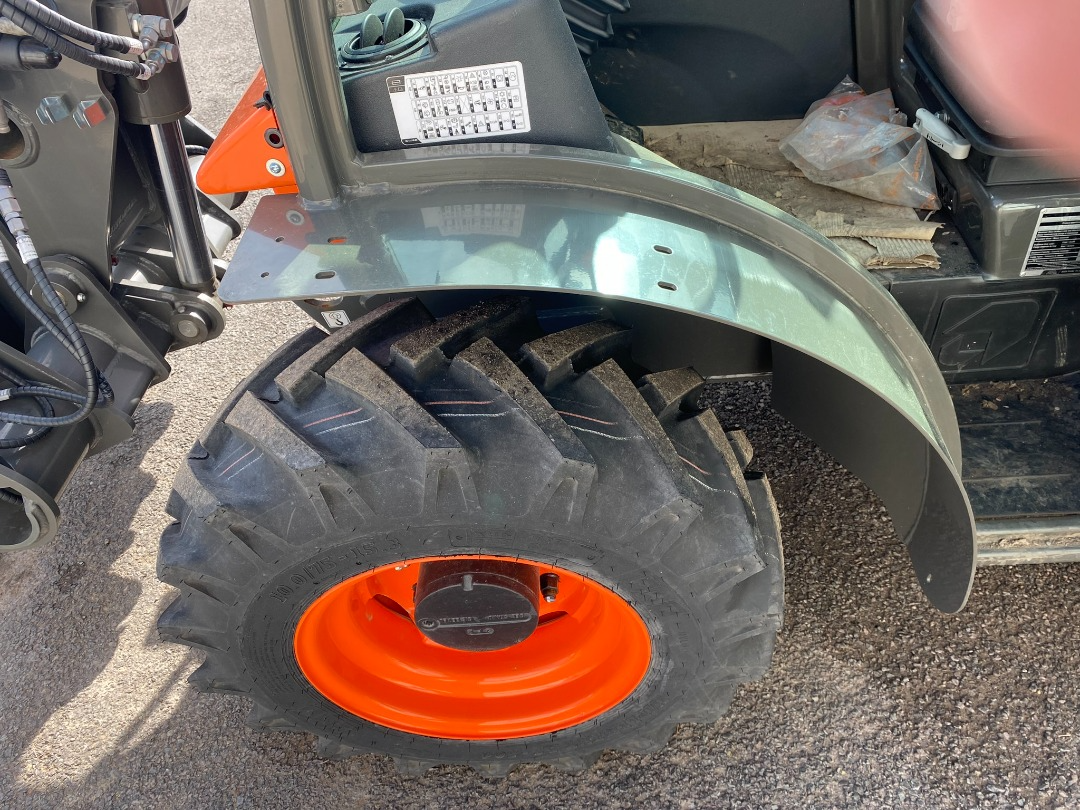

With a lifting capacity of up to 5,000 pounds and a maximum lifting height of 16.4 feet, it can handle heavy loads efficiently, offering a capacity of 3,970 pounds at full height. The telehandler's maximum reach extends to 7.74 feet, and it features durable 10x75-15.3 tires. It's important to note that this model is sold without any attachments.
General
| Load capacity | 5000 lb |
| Load capacity at maximum height | 3970 lb |
| Empty weight | 10360 lb |
| Transmission | Hydrostatic |
| Maximum lift | 16.4 ft |
| Maximum lift under maximum load | 14.11 ft |
| Maximum reach | 7.74 ft |
| Maximum load at maximum reach | 1764 lb |
Engine
| Brand | Kubota |
| Model | D1803-CR-T-E5B |
| Power | 44.5 hp |
| Torque | 150,5@1500 |
| No. of cylinders | 3 |
| Emissions | Stage V - EPA Tier 4f |
| Noise level (LwA) | 104 dB(A) |
Driving
| Max. speed | 12.4 mph |
| Maximum gradient | 42 % |
| External turning radius | 119,76 in |
| Steering modes | Two-wheel front steer, four-wheel and crab |
| Traction | 4x4x4 |
| Tyres | 10/75-15.3 |
Hydraulic system
| Flow rate | 13.68 gal/min |
| Working pressure | 3481 psi |
Tank capacity
| Fuel | 17.2 gal |
| Hydraulic system | 18.5 gal |
Brakes
| Service | Hydraulic, disc |
| Parking | Mechanical |
