New Holland ML12T

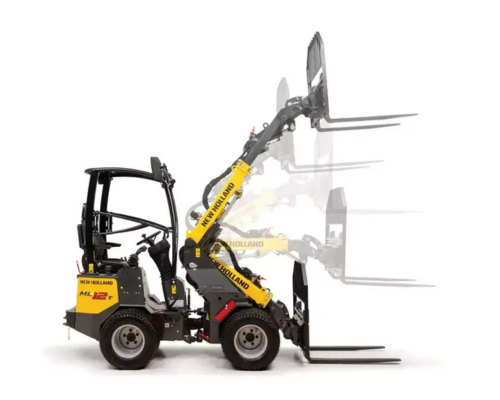

New Holland ML12T Telescopic – Reach Higher with Compact Power

The New Holland ML12T is part of the new Small Articulated Loader (SAL) lineup, delivering the strength, versatility, and light footprint needed to get more done in less space. Designed with a telescopic boom, the ML12T gives operators extended reach without sacrificing stability or control. Despite its compact size, it boasts impressive lifting capability, making it a smart choice for landscaping, light construction, and property maintenance on all types of terrain.

Compact Convenience That Goes Further

Measuring just 36.2 inches (920 mm) wide and 81.1 inches (2060 mm) high, the ML12T is built for tight work areas like sidewalks, backyards, and fenced-in spaces.

• Length without bucket: 89.2 inches (2265 mm)

• Length with bucket: 115.2 inches (2927 mm)

Its nimble design provides unmatched maneuverability while maintaining the lifting power needed for everyday jobs. From snow and debris removal to hauling mulch or tree limbs, the ML12T is sized right and built tough for sensitive surfaces like turf.

Power, Stability, and Reach

The ML12T offers more than just compact convenience—it’s a powerful tool on any jobsite:

• Lift capacity: 2,425 lbs (1100 kg)

• Tipping load: Up to 1,650 lbs (750 kg) depending on loader position

• Lift height: 111 inches (2820 mm)

Weighing 2,646 lbs (1200 kg), this 25 HP (18.4 kW) machine features a low center of gravity and a 49.1-inch (1247 mm) wheelbase for stable, controlled movement—even on soft or uneven ground. An open cab with ROPS/FOPS protection ensures operator safety and visibility.

Built for Performance

• Hydrostatic 4-wheel drive ensures smooth operation and traction

• CII mechanical coupler allows quick attachment changes for a variety of tasks

• Articulated and oscillating frame provides excellent stability and traction, even on uneven terrain

With its telescopic reach and compact footprint, the ML12T is ideal for loading and unloading materials from taller trucks, grading, leveling, and placing materials precisely—making it one of the most versatile machines in its class.



General

• ROPS / FOPS: Yes / Yes

• Operating Weight: 2,646 lbs

Engine & Driveline

• Engine Output (Gross): 25 HP

• Engine Type: 3-cylinder, water-cooled

• Displacement: 54.8 in³

• Rated Speed: 3,600 rpm

• Transmission Type: Hydrostatic

• Max Forward Speed: 9.3 mph

• Parking Brake Actuation: Hydraulic

Dimensions

• Wheelbase: 4 ft 1 in

• Length with Bucket on Ground: 9 ft 7 in

• Height (over cab): 6 ft 9 in

• Width (over standard tires): 3 ft 0 in

• Height to Pivot Pin: 8 ft 12 in

• Full Lift Dump Height: 6 ft 9 in

• Dump Angle (at dump / max): 40°

• Turn Radius (over bucket): 7 ft 4 in

Performance

• Lift Capacity: 2,425 lbs

• System Pressure: 2,200 psi

• Cumulative Pump Flow: 14.8 gal/min

• Loader Control: Joystick

• Ride Control System: Optional

Capacities

• Fuel Tank: 11.9 gallons (U.S.)
