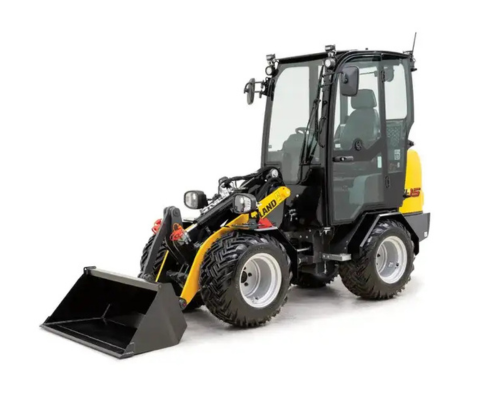

New Holland ML15

Where Compact Meets Capability

With a narrow frame just 43.3 inches (1100 mm) wide and a height of 87.8 inches (2230 mm), the New Holland ML15 is built for navigating tight spaces — ideal for landscapers clearing sidewalks, working in fenced-in areas, or accessing confined job sites.

• Length without bucket: 107 inches (2718 mm)

• Length with bucket: 133.4 inches (3389 mm)

The small articulated loader series offers exceptional agility without sacrificing strength. Whether you're removing snow and debris, transporting landscaping materials, or working on turf and sensitive surfaces, the ML15 delivers the perfect combination of size, speed, and performance.

Strength & Stability in a Compact Design

Designed for jobs that require both power and precision, the ML15 offers:

• Lift capacity: 3,086 lbs (1400 kg)

• Tipping load: 3,307 lbs (1500 kg)

• Lift height: 81.4 inches (2067 mm)

Powered by a 26 HP (19.4 kW) engine and weighing in at 3,362 lbs (1525 kg), this machine is tough on tasks but light on the ground — reducing turf disturbance and offering confident handling in soft conditions. An open cab with ROPS/FOPS protection, a 55.9-inch (1420 mm) wheelbase, and a low center of gravity enhance both operator safety and performance.

Performance-Packed Features

The ML15 comes equipped with hydrostatic 4-wheel drive and a CII mechanical coupler, giving operators access to a wide range of attachments for digging, hauling, grading, and more. Its articulated and oscillating frame delivers increased traction and superior load stability — reducing material spillage and increasing productivity on uneven terrain.

Reach, Lift & Versatility

The ML15’s lift and reach capabilities provide excellent flexibility for dumping, leveling, and grading tasks.

• Lift height: 81.4 inches (2067 mm)

• Dump height: 53.5 inches (1360 mm)

These dimensions allow the ML15 to load and unload from larger trucks with ease, expanding its usefulness across a variety of landscaping and light construction applications.



General

• ROPS / FOPS: Yes / Yes

• Operating Weight: 3,362 lbs

Engine & Driveline

• Engine Output (Gross): 26 HP

• Engine Type: 3-cylinder, water-cooled

• Displacement: 68.5 in³

• Rated Speed: 3,000 rpm

• Transmission Type: Hydrostatic

• Max Forward Speed: 11.8 mph

• Parking Brake Actuation: Hydraulic

Dimensions

• Wheelbase: 4 ft 8 in

• Length with Bucket on Ground: 11 ft 1 in

• Height (over cab): 7 ft 4 in

• Width (over standard tires): 3 ft 7 in

• Height to Pivot Pin: 6 ft 9 in

• Full Lift Dump Height: 4 ft 6 in

• Dump Angle (at dump / max): 41°

• Turn Radius (over bucket): 8 ft 1 in

Performance

• Cumulative Pump Flow: 22.2 gal/min

• System Pressure: 2,500 psi

Capacities

• Fuel Tank: 5.5 gallons (U.S.)
