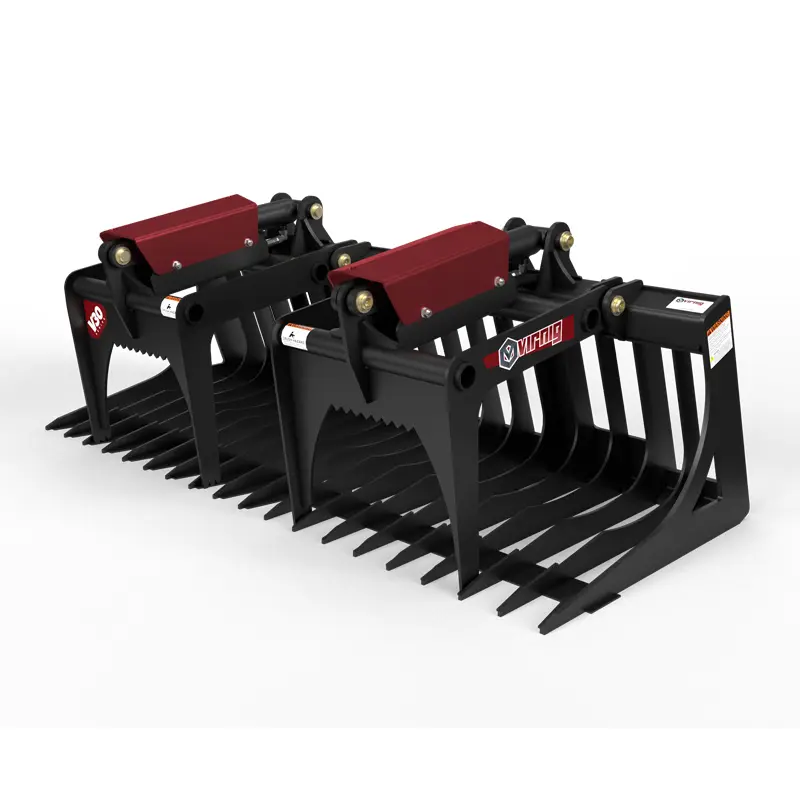

SRGV66-CT image
Virnig

Virnig SRGV66-CT

The Virnig V30 CT Skeleton Rock Grapple (66") is a lightweight yet rugged attachment designed for compact tractors with loader capacities under 1,500 lbs. Ideal for digging, raking, piling, and loading brush or rocks, it features 1/4" Grade 50 steel tines, a 28.7" jaw opening, NitroSteel® cylinder rods, Teflon® coated hinge bushings, a curved side plate, and a rock dam for secure material handling and lasting durability.

Get a Quote
Nationwide Shipping
Ask a Question

Series Models

SRGV66-CT

67.5" | (21) 1/4" Grade 50 Tines on 3.1" Spacing, (2) Independent Cylinders w. Guards, 405 lbs.

Series Models

SRGV66-CT

67.5" | (21) 1/4" Grade 50 Tines on 3.1" Spacing, (2) Independent Cylinders w. Guards, 405 lbs.

Virnig V30 Series

SRGV66-CT Skeleton Rock Grapple

The Virnig SRGV66-CT Skeleton Rock Grapple gives compact tractor owners added working width for picking rocks, hauling uneven loads, and cleaning up debris while letting dirt fall through. With one-piece Grade 50 steel tines, a fully gusseted frame, and grapple control for rough material, it is built for rock removal, land cleanup, and property maintenance where wider coverage matters.

Overall Width

67.5"

Jaw Opening

28.7"

Approximate Weight

405 lbs

Key Features

  • Built to pick and haul rocks and uneven loads while letting dirt fall through
  • Every tine is made from one piece of 1/4" Grade 50 steel for maximum rigidity
  • Curved side plate allows wider material handling
  • Rock dam and notch near tine tips help hold rocks securely
  • Tines are fully gusseted for added strength
  • NitroSteel cylinder rods and Teflon-coated bushings on the hinge help support long service life

Specifications

  • Mount: Universal Skid Steer only
  • Recommended Loader Capacity: Less than 1,500 lbs
  • Height: 22.9" overall / 19.0" bucket
  • Depth: 29.0" overall / 23.5" inside
  • Number of Tines: 21
  • Space Between Tines: 3.1"
  • Tine Thickness: 0.25" Grade 50 plate
  • Side Plate Thickness: 0.375" Grade 50 plate
  • Cylinder Bore / Stroke: 2.0" / 6.0"
  • Cylinder Pins / Hinge Pins: 1.0"

Why Customers Choose the SRGV66-CT

The SRGV66-CT is a strong fit for compact tractor owners who want more working width and material coverage while staying within the V30 platform. It combines the sorting ability of a rock bucket with the holding control of a grapple, making it a practical choice for rock cleanup, storm debris, site prep, and everyday property maintenance.
