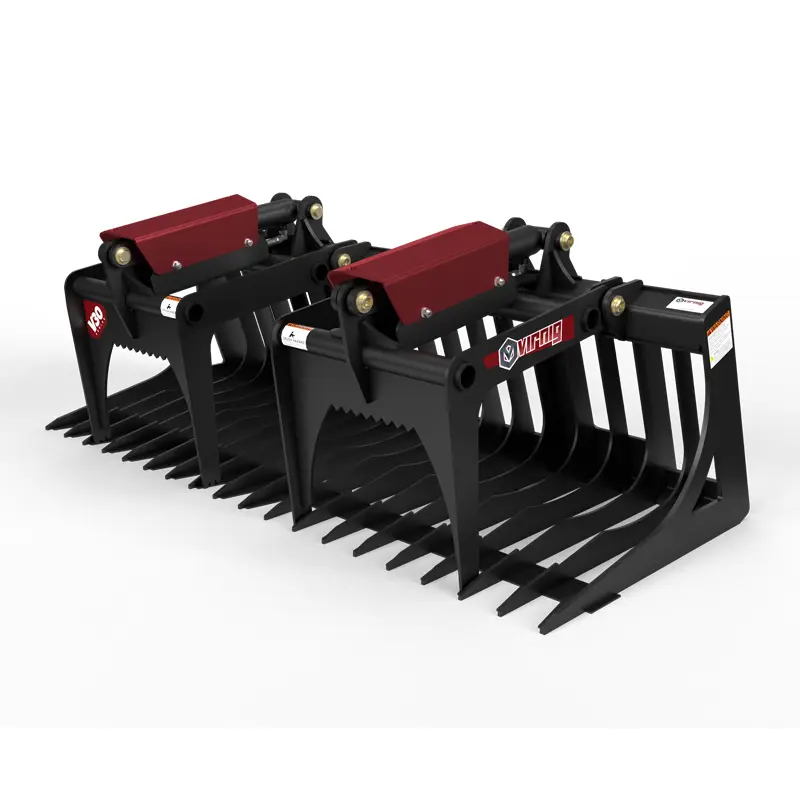

SRGV72-CT image
Virnig

Virnig SRGV72-CT

The Virnig V30 CT Skeleton Rock Grapple (72") is a lightweight yet rugged attachment designed for compact tractors with loader capacities under 1,500 lbs. Ideal for digging, raking, piling, and loading brush or rocks, it features 1/4" Grade 50 steel tines, a 28.7" jaw opening, NitroSteel® cylinder rods, Teflon® coated hinge bushings, a curved side plate, and a rock dam for secure material handling and lasting durability.

Get a Quote
Nationwide Shipping
Ask a Question

Series Models

SRGV72-CT

74.1" | (23) 1/4" Grade 50 Tines on 3.1" Spacing, (2) Independent Cylinders w. Guards, 425 lbs.

Series Models

SRGV72-CT

74.1" | (23) 1/4" Grade 50 Tines on 3.1" Spacing, (2) Independent Cylinders w. Guards, 425 lbs.

Virnig V30 Series

SRGV72-CT Skeleton Rock Grapple

The Virnig SRGV72-CT Skeleton Rock Grapple gives compact tractor owners maximum width in the V30 skeleton rock grapple lineup for picking rocks, hauling uneven loads, and cleaning up debris while letting dirt fall through. With one-piece Grade 50 steel tines, a fully gusseted structure, and secure grapple control, it is built for rock removal, site prep, and wider-coverage property maintenance work.

Overall Width

74.1"

Jaw Opening

28.7"

Approximate Weight

425 lbs

Key Features

  • Built to pick and haul rocks and uneven loads while letting dirt fall through
  • Every tine is made from one piece of 1/4" Grade 50 steel for maximum rigidity
  • Curved side plate allows wider material handling
  • Rock dam and notch near tine tips help hold rocks securely
  • Tines are fully gusseted for added strength
  • NitroSteel cylinder rods and Teflon-coated bushings on the hinge help support long service life

Specifications

  • Mount: Universal Skid Steer only
  • Recommended Loader Capacity: Less than 1,500 lbs
  • Height: 22.9" overall / 19.0" bucket
  • Depth: 29.0" overall / 23.5" inside
  • Number of Tines: 23
  • Space Between Tines: 3.1"
  • Tine Thickness: 0.25" Grade 50 plate
  • Side Plate Thickness: 0.375" Grade 50 plate
  • Cylinder Bore / Stroke: 2.0" / 6.0"
  • Cylinder Pins / Hinge Pins: 1.0"

Why Customers Choose the SRGV72-CT

The SRGV72-CT is a strong fit for compact tractor owners who want the widest V30 rock grapple option for increased material coverage and cleanup efficiency. It combines the sorting ability of a rock bucket with the holding control of a grapple, making it a practical choice for rock removal, storm debris, site prep, and larger property maintenance jobs.
