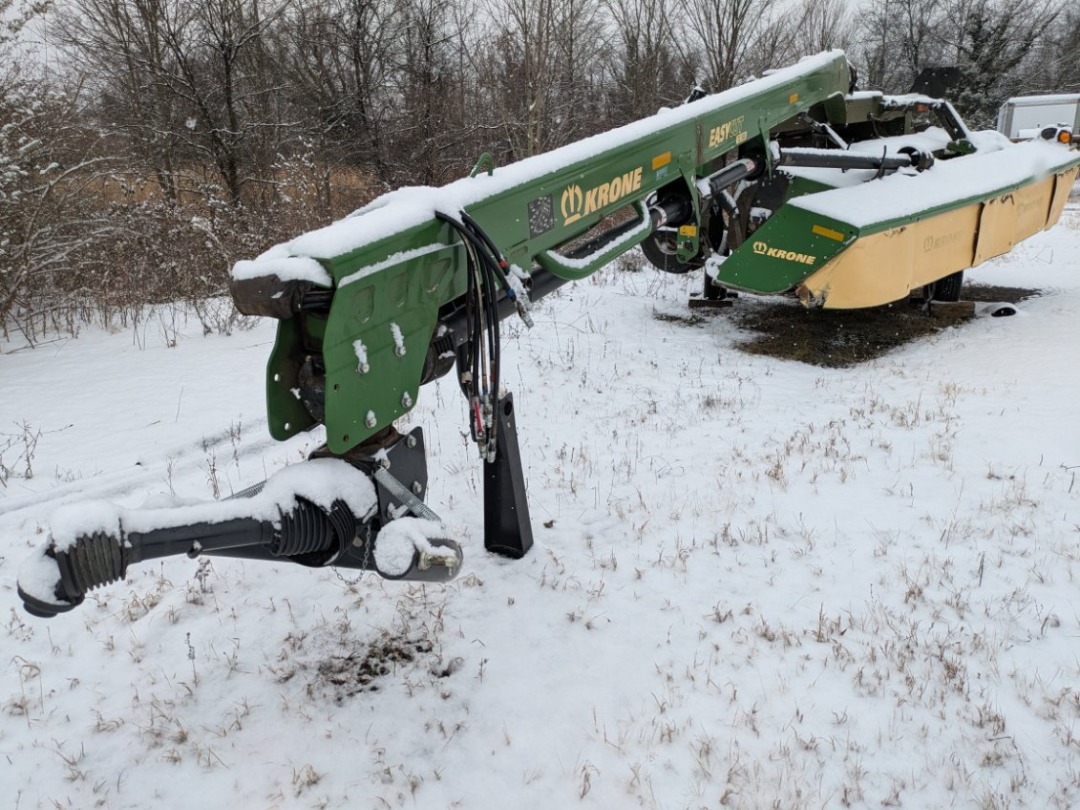

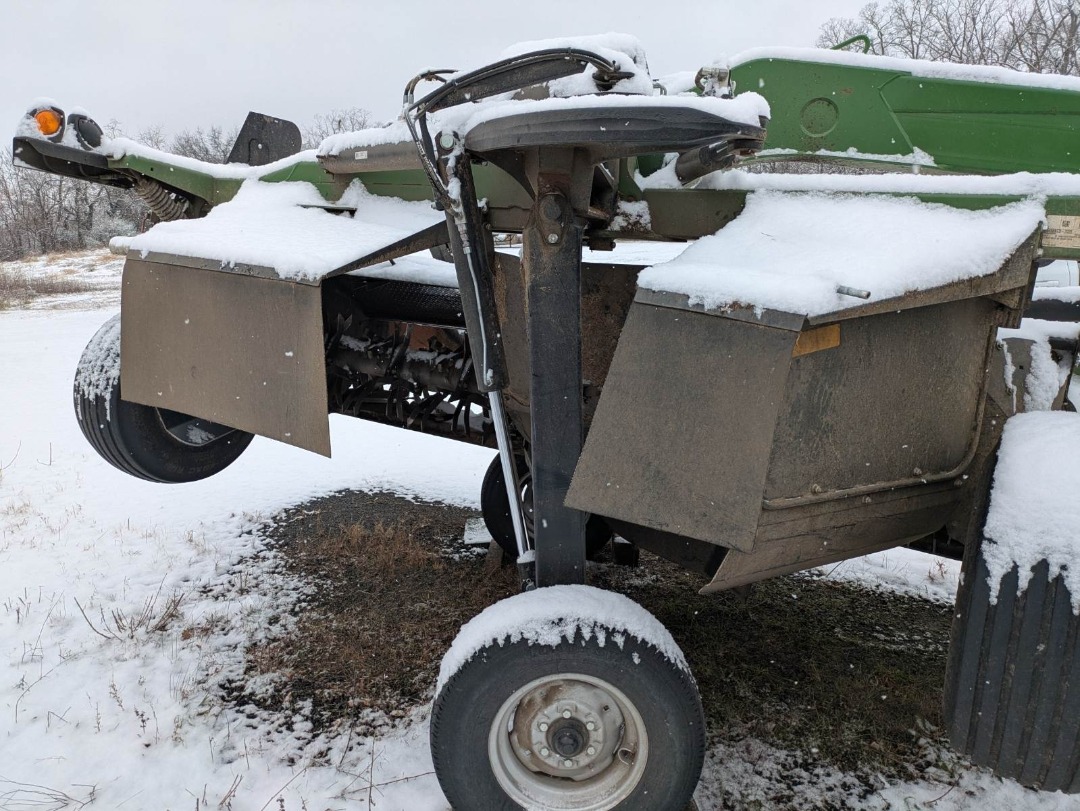

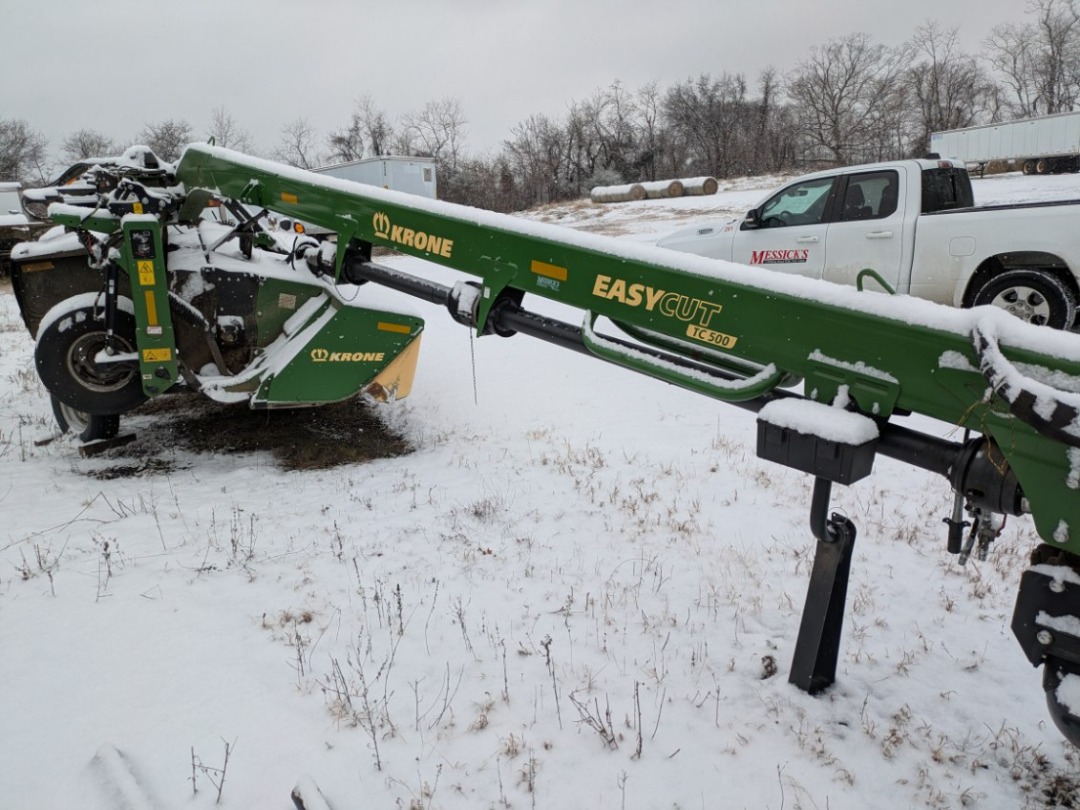

Used KRONE ECTC500CV

EasyCut Trailed Center Mower Conditioner - EasyCut TC 500 CV and 500 CRi

The EasyCut Trailed Center (TC) mower conditioner offers the choice of a 2-point hitch or drawbar, along with various conditioner options. These mowers boast a production capacity of 15-18 acres per hour, depending on the model, making them the ideal choice for fields with narrow gates thanks to the optional end-wise transport feature.

SmartCut Cutterbar: This feature delivers increased blade overlap, reducing streaking in lighter crops.

SafeCut Hubs: These hubs protect the cutterbar when a disc encounters a foreign object by shearing a roll pin within the sprocket, causing the disc to spin up and out of the path of neighboring discs.

Conditioner Options: Multiple conditioning options are available, including steel chevron rollers, polyurethane intermeshing rollers, new style v-tines, or the option to remove the conditioner altogether.

Optional Endwise Transport: This feature allows the machine to transition from field mode to a 9' wide transport position in just 30 seconds.

Trailed Disc Mowers - EasyCut Series

• Side- or mid-mounted drawbar
• Robust and fully welded cutterbar with massive permanently lubricated sprockets
• Quick-change blades
• SafeCut INSIDE – impact protection for each individual disc
• SmartCut – blades overlap generously for stripeless cuts
• DuoGrip – double guidance and center-of-gravity suspension
• Optimum ground pressure control from responsive and adjustable springs
• Steel tine conditioner with steep angle V-tines
• Roller conditioner with profiled rollers for intensive conditioning
• Cross conveyor belt for variable swath sizes
• Versatile and flexible in the field
• Custom specification
• Heavy-duty build
• Delivering to farmers' needs

The Cutterbar

• Rugged and well-proven
• Fully welded: Robust, sealed, and permanently lubricated
• Durable satellite drives with massive spur gears for quiet running and superior efficiency
• No inner shoe for trouble-free cutting

The KRONE EasyCut disc mowers provide the cleanest and most accurate cuts. The enclosed and fully welded cutterbar operates dependably and leak-free over many years of hard work. Massive and oil-immersed spur gears impress with their very quiet and reliable running during sustained peak-load operation.

Cutterbar Protection

• Full driveline protection for added reliability
• Neighboring discs will not collide
• Wear-free
• Quick-change roll pins for minimum downtime and costs

Colliding discs may cause damage and involve costly repairs. KRONE SafeCut offers maximum protection and peace of mind. This award-winning system, available on all EasyCut models, ensures a unique level of protection and operator comfort. SafeCut is a base specification feature on all EasyCut F and R models.

CV-Steel Tine Conditioner

• The specialist for quality forage
• Easy and quick operation
• Optional deflectors spread the material across the full width
• Infinitely variable swath widths
• Mechanical gearbox, variable conditioning intensity

The KRONE CV rotor with V-shaped and grippy steel tines spreads the crop at the full working width. Its massive 640 mm diameter and the helical arrangement of the tines guarantee a continuous crop flow, high throughput, and superior conditioning.
