Inline Round Bale Wrapper

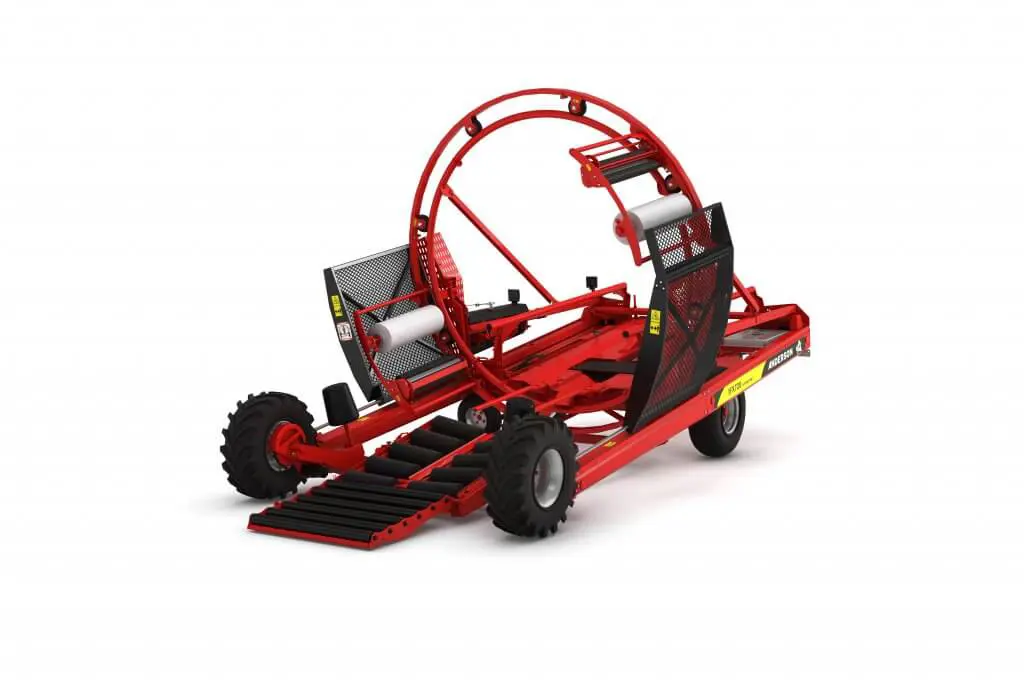

Anderson IFX720 XTRACTOR™
A high-performance inline bale wrapper built for speed, consistency, and reliable silage protection in demanding field conditions.
Faster Inline Wrapping
The IFX720 XTRACTOR™ adds larger hoop capability, a faster pusher, and practical field controls to help operators wrap more bales per hour while protecting feed quality.
Product Features & Improvements
The Anderson IFX720 XTRACTOR™ builds on proven inline wrapper performance with improved speed, larger bale capacity, and operator-focused controls for long wrapping days.
Larger Hoop Capacity
Designed to wrap round bales up to 6 ft in diameter, giving operators more flexibility with larger bale packages.
Faster Bale Pusher
A faster pusher helps increase productivity and supports wrapping speeds up to 180 bales per hour.
XTRACTOR™ Final Bale Push-Off
The automatic final bale push-off system helps finish rows quickly and cleanly with simple lever operation.
Autopilot Steering
The automatic pilot system can steer by following the adjacent bale row, helping maximize storage space and maintain row alignment.
Film Watch Sensor
Automatically stops the wrapping cycle if film runs out or breaks, helping prevent poorly wrapped bales and wasted time.
Remote Operation
Start, steer, and stop the unit remotely from the tractor to reduce trips in and out of the cab during field work.
Hydraulic Lifting Axles
Hydraulic lifting axles help the machine move over field obstacles and uneven ground more easily.
V-Shaped Roller Bed
The V-shaped roller bed and bale guide rollers help keep round bales centered, including when wrapping on slopes.
Reduced Downtime
A large fuel tank, work lights, Smart Start, road lights, and standard hydraulic tail gate support longer, more efficient wrapping days.
Application In The Field
The IFX720 XTRACTOR™ is built for producers and custom operators who need fast inline wrapping for high-quality silage preservation during short harvest windows.
High-Volume Wrapping
Ideal for wrapping large numbers of round bales quickly when weather and harvest timing matter.
Silage Quality Protection
Consistent film application helps protect nutrient value and preserve feed quality in inline storage rows.
Contractor Productivity
Remote control, Autopilot steering, and fast throughput help custom operators complete more jobs efficiently.
Uneven Field Conditions
Hydraulic lifting axles and bale guide rollers support dependable operation across slopes, rows, and field obstacles.
Key Specifications
Core capacity and field-ready specifications for the Anderson IFX720 XTRACTOR™ inline bale wrapper.
| Round Bale Diameter | Up to 6 ft |
|---|---|
| Round Bale Length | Up to 5 ft |
| Wrapping Speed | Up to 180 bales per hour |
| Film Stretcher | 2 x 30 in aluminum film stretchers; 4 x 30 in optional |
| Engine | 13 HP Honda; 20 HP optional |
| Final Bale Push-Off | XTRACTOR™ automatic system |
| Bed Shape | V-shaped for round bales |
| Leveling System | Hydraulic lifting axle |
| Overall Width | 9 ft 10 in |
| Transport Width | 9 ft 1 in |
| Overall Length | 18 ft 6 in |
| Overall Weight | 4,739 lb |
Speed, Control, And Consistent Inline Wrapping
The Anderson IFX720 XTRACTOR™ helps operators wrap more bales, protect feed quality, and keep field work moving with practical automation and proven bale handling.
