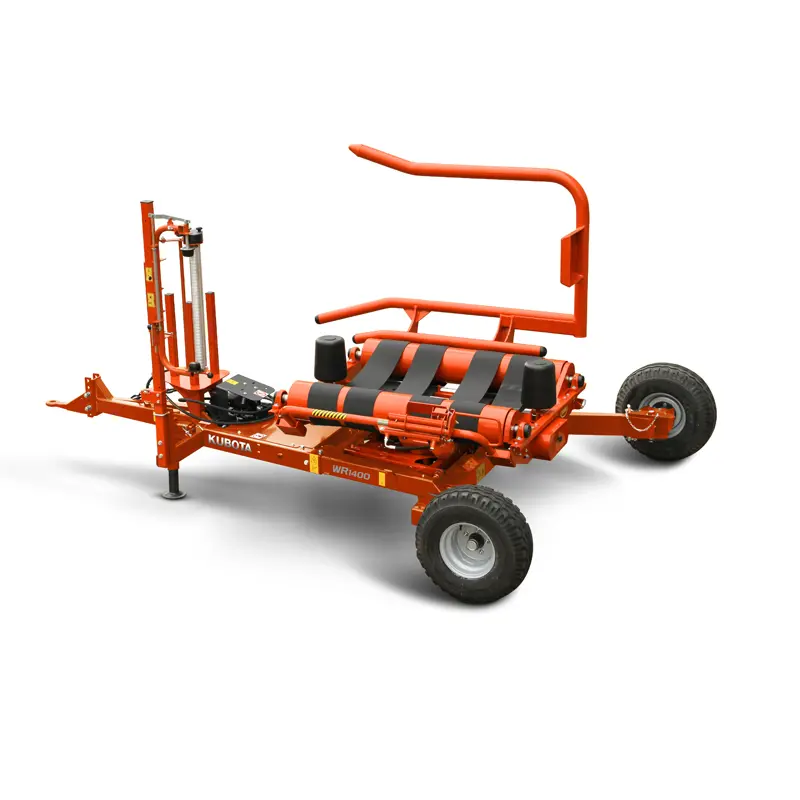

Kubota WR1400M
The Kubota WR1400M Bale Wrapper is a pull-type, manual cable-controlled wrapper designed to preserve hay and silage with consistent, efficient film application. Its self-loading arm, stable turntable, automatic film cutter, and gentle unloading system help reduce operator effort and protect wrapped bales in the field. Built for smaller tractors, it handles round bales up to 47" x 50" and 2,650 lbs., making it a practical choice for productive forage operations.
Financing Available
Ask a Question
Kubota Bale Wrapper
Kubota WR1400M Bale Wrapper
The Kubota WR1400M is a pull-type, manual cable-controlled round bale wrapper built for efficient silage and hay preservation in the field. Its low-profile turntable design, self-loading arm, and gentle unloading system help operators wrap bales cleanly while reducing film damage and handling stress.
Built For Productive Wrapping
- Handles round bales up to 47" x 50"
- Wraps bales up to 2,650 lbs.
- Manual cable control for straightforward operation
- Automatic film cutter standard
- Bale and wrap counter with auto-stop at cycle end
Product Features
Designed to make bale wrapping easier, more stable, and more consistent across demanding field conditions.
Easy Pull-Type Operation
- Designed for use with smaller tractors
- Manual cable controls keep operation simple
- Fully automatic film cutter reduces operator effort
Stable Turntable Wrapping
- Two driven rollers support smooth bale rotation
- Consistent wrapping even in tougher conditions
- Low-profile design helps improve bale handling
Self-Loading Arm
- Hydraulic loading arm helps pick up bales in the field
- Extendable wheel arm improves loading stability
- Loads heavy bales without requiring counterweights
Gentle Unloading
- Wide-spaced wheels allow a very low turntable height
- Reduced drop height helps protect wrapped bales
- Minimizes risk of film damage during unloading
Field Efficiency
- Maximum wrapping speed up to 30 rpm
- 750 mm pre-stretcher supports efficient film use
- Auto-stop helps finish cycles consistently
Transport-Friendly Design
- Narrow transport setup for moving between fields
- Trailed design supports practical farm mobility
- 10.0/80-12 wheels built for wrapper transport
Improvements That Matter In The Field
- Better bale preservation: consistent film application helps seal silage and hay for improved feed quality.
- Improved loading confidence: the extendable wheel arm adds stability when lifting heavy bales.
- Reduced film damage: low unloading height helps protect the wrapped bale as it leaves the turntable.
- Less operator fatigue: automatic film cutting and auto-stop reduce repetitive manual steps.
- Cleaner workflow: bale and wrap counting helps operators track production during long wrapping days.
Application & Field Use
- Ideal for wrapping round silage bales after baling
- Useful for haylage operations focused on feed preservation
- Designed for farms using smaller tractors and pull-type equipment
- Works well in field-side wrapping where bales are loaded, wrapped, and unloaded in sequence
- Supports efficient seasonal forage handling during tight harvest windows
Key Specifications
Core WR1400M details for comparing field fit, bale capacity, and operating needs.
47" x 50"
Max Bale Size
2,650 lbs.
Max Bale Weight
30 rpm
Max Wrapping Speed
Manual
Cable Control
Wrapper Configuration
- Pull-type wrapper
- Support rollers/belts: 2/4
- Automatic film cutter: standard
- 750 mm pre-stretcher: standard
- Bale and wrap counter: standard
Transport & Dimensions
- Transport length: 170"
- Transport width: 99"
- Transport height: 76"
- Approximate weight: 2,249 lbs.
- Oil consumption: 28 l/min
Wrap More Confidently With Kubota
The WR1400M gives operators a practical, durable bale wrapping solution for preserving forage quality while improving stability, control, and handling in real field conditions.
